Key Takeaways:

• ‍Renderings must reflect real-world buildability, not just aesthetics, to avoid costly construction errors and unmet expectations.
• ‍3D visualization tools enable better collaboration by giving all stakeholders a shared, accurate view of the design throughout the project lifecycle.
• ‍Integrating real-time data into models enhances accuracy, allowing teams to adapt to site changes and make smarter, faster decisions.

‍

‍

A stunning rendering can spark excitement, win over clients, and bring a design concept to life. But what happens when that beautiful image defies gravity, ignores construction tolerances, or showcases materials and connections that simply can’t be executed on site?

As visualization tools grow more powerful and photorealistic, so too does the responsibility of 3D artists and architects to ensure their work reflects what is actually buildable. In an era where renders aren’t just for marketing—but are used during real construction—constructibility must be part of the visualization process.

Why Constructibility Matters in Architecture and Construction Visualization

Constructibility refers to how easily and accurately a design can be built using real-world methods, materials, and tolerances. It's the bridge between design intent and physical reality.

Inaccurate visualizations may lead to:

• Costly miscommunication between architects and builders,
• Fabrication errors or redesigns on site,
• Client disappointment when the built result doesn’t match the glossy visual.

‍

‍

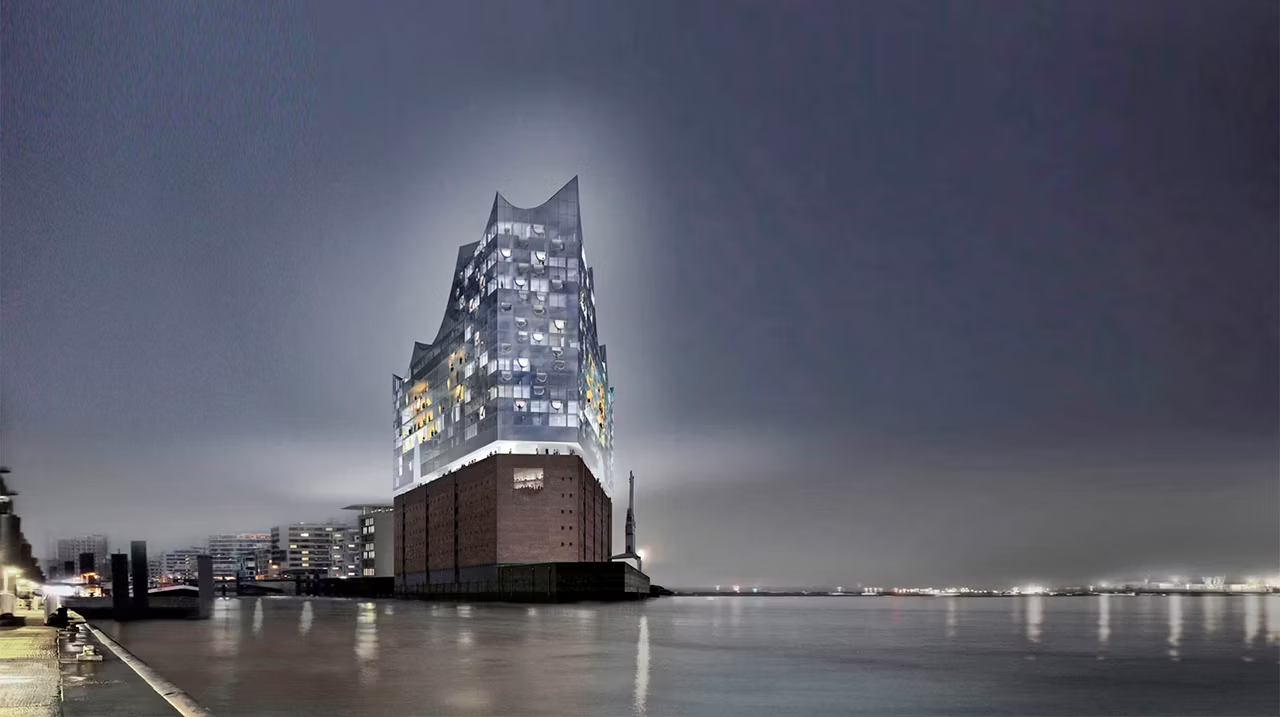

All too often, 3D visuals feature unsupported overhangs, unrealistic material joins, or perfectly flush surfaces that don't account for expansion joints, tolerances, or engineering constraints. These “impossible details” may look great in a render, but they break down the moment a construction team tries to bring them to life.

How Visualization Tools Help 3D Artists Spot Constructibility Errors

Studies show that using accurate 3D models in construction can boost project success by improving cost control, safety, and quality. When 3D artists and design teams rely on precise modeling, they’re not just visualizing aesthetics—they're building smarter. Integration with modern tools like BIM, and VR enables early detection of issues, cuts survey costs by up to 75%, and increases productivity by 50%.

The goal is clear: create visuals that reveal flaws, encourage collaboration, and reduce rework.

Modern design workflows increasingly pair modeling platforms like Revit or ArchiCAD with real-time rendering engines like D5 Render. These tools help 3D artists move beyond creating visually appealing scenes and toward verifying whether the design can stand up to real-world construction logic.

Key modeling issues 3D artists should look out for:

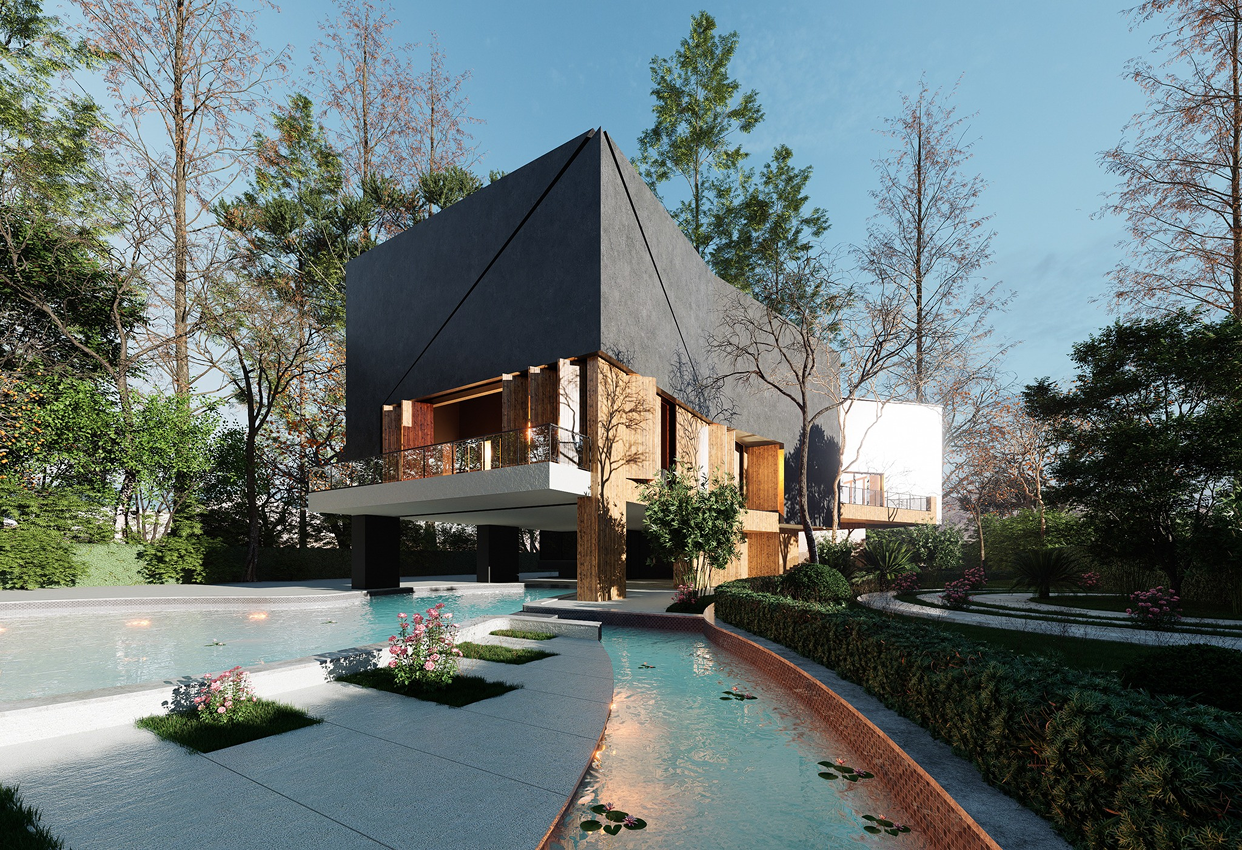

• ‍Floating elements or defying gravity: Check that cantilevers, balconies, and extended roofs have visible supports or structural logic. Use section cuts and gravity simulations (if available) to test feasibility.
• ‍Unrealistic material joints: Ensure that different materials are modeled with actual joints or interfaces, especially at floor transitions, corners, and facade panels. For example, glass should not intersect masonry without a frame or silicone joint.
• ‍Zero tolerance gaps: Avoid flush elements without room for expansion or construction tolerances. A wooden door flush against a concrete frame might look sleek, but in reality, it needs a 3–5mm gap.
• ‍Alignment mismatches: Align columns, walls, and floor slabs across multiple levels using BIM coordination or gridlines. Even in stylized visuals, misalignments can misrepresent how buildings come together.
• ‍Stairs, railings, and accessibility: Confirm that stairs have proper riser/tread ratios and that handrails or guardrails are present and follow safety standards. Use scale references to verify headroom and circulation space.
• ‍Hidden construction layers: Don’t forget insulation, waterproofing, or structural framing. If your model omits these for visual clarity, include them in section views or annotated renders for internal review.

‍

‍

By using visualization not just for mood but for method, 3D artists can play a direct role in preventing construction headaches before they happen. Tools like clash detection, real-time walkthroughs, and AR overlays become practical aids for flagging problems that would otherwise lead to costly delays.

Visualization in the Hands of Construction Teams

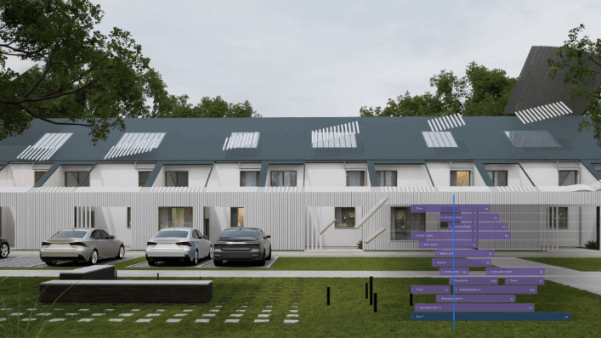

Visualization doesn’t stop at the design stage. Construction teams now use 3D visuals, animations, and walkthroughs to help guide the building process. For example, animated sequences can show step-by-step how a structure should be put together, making complex assemblies easier to understand.

‍

‍

AR and VR tools let workers place 3D models directly onto the job site, helping them check layouts and spot mistakes before they happen. In one project, contractors used a shared 3D model to catch a ceiling duct that would have clashed with a beam—something that wasn’t clear in the 2D plans but was obvious in the visualization.

Also read:

The Easiest Way to Create Stunning Phasing Animations

Immersively Explore Spatial Designs Through Virtual Tours

The Evolving Expectation: Realism with Responsibility

Architectural renders have evolved. Once dominated by hyper-polished, artistic visuals designed to impress, the industry now leans toward visual honesty.

This shift is driven by:

• ‍Client expectations: Today’s clients often assume that the render is the final product—down to the finishes, fixtures, and lighting.
• ‍Cross-team collaboration: Renders need to clearly convey design intent to engineers, fabricators, and site managers. With D5, more team members can actively participate in the design and visualization process, helping teams make quicker and better-informed decisions.
• ‍Design accountability: If a render shows something structurally implausible, the blame may fall on the designer—not the contractor.

‍

‍

High-fidelity real-time renderers give artists powerful tools, but with that power comes the need for accuracy, not fantasy. A great render should inspire—but it should also be a promise of what’s to come, not a mirage.

Best Practices: Rendering the Buildable

To ensure that renders support constructibility:

• ‍Model first, render second: Base visuals on detailed Revit or BIM data—not standalone models built just for appearance.
• ‍Involve engineers early: Collaborate with structural and MEP consultants to ensure visual elements reflect real-world constraints.
• ‍Balance realism with feasibility: Add beauty and atmosphere, but ensure the bones of the design are grounded in construction logic.
• ‍Educate clients: Help stakeholders understand what’s realistic and what’s representational—especially when exploring conceptual imagery.

Conclusion

Rendering something beautiful is easy. Rendering something buildable takes skill, foresight, and collaboration. In today’s integrated design-construction landscape, visualization is no longer just a marketing tool—it’s a coordination tool, a verification step, and a shared language for everyone building the future.

Architects and 3D artists have the power—and responsibility—to ensure that what they show is not only inspiring, but possible. Because the best renderings aren’t just pretty pictures—they’re blueprints for reality.

‍
